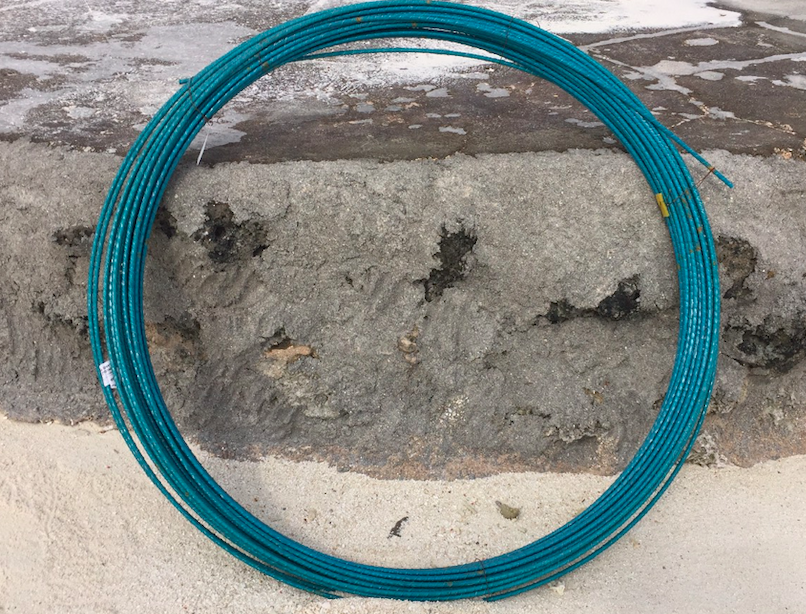

Maxis Fibre Rebar (ไฟเบอร์ รีบาร์)

maxis GFRP Rebar is a structural ribbed reinforcing bar made of high strength and corrosion resistant glass fibre that are impregnated and bound by an extremely durable polymeric epoxy resin.



This combination equals an engineered material system resulting in unique attributes that replace and supersede typical materials such as galvanized, epoxy coated and stainless steel rebar.



Its characteristic properties are ideal for any harsh and corrosive environments.



GFRP is permanently resistant to chemical acids and alkaline bases, therefore extra concrete cover, anti-shrink additives, and even cathodic protection are not required. GFRP significantly improves the longevity of engineering structures where corrosion is a major factor.



Product Description

Product Name maxis Fibre rebar/ maxis GFRP rebar
Colors Turquoise and Light Green/Blue
Features Durable and Corrosion Free, Superior tensile strength, Non-conductive to electricity and heat,  Non-magnetic, Non-spark materials, Environmentally friendly, Adjustable length, Light Weight, and Cost-efficient
Used Reinforced concrete exposed to de-icing chloride, High-voltages & Electromagnetic Fields, Applications Subjected to other corrosive agents, Structures built in or close to sea water, Thermally sensitive applications, Weight sensitive structures, Applications requiring low electric conductivity or electromagnetic neutrality, Mansory strengthening, and Long-term durability required.
Specs:
                                 Sizes 4, 6, 8, 9, 10, 12, 13, 14, 15, 16, 18, 20, 22, 25, 28, 32mm diameter
                             Length 4mm and 6mm diameter, 200 meters/roll
  8mm and 12mm diameter, 100meters/roll
                             13mm to 32mm customized length (20ft container- 5.8meters / 40ft container - 12meters )
Packaging: EXPORT
              FCL 20ft container 4mm to 12mm diameter more or less 500 rolls
  13mm to 32mm diameter more or less 9,000 to 12,000 pcs
Shipping Terms EXW





Tensile Strength Comparison

Steel Rebar   maxis Fibre Rebar
Diameter (mm) Weight/meter (kg) Tensile Strength (ksc)=Kg/Sq. cm   Diameter (mm) Weight/meter (kg) Tension Test Maximum Load (kg) Tensile Strength (ksc)=Kg/sq.cm
6 0.222 4,900   6 0.060 2,643 11,311.63
9 0.499 4,900   9 0.120 6,403 9,640.64
12 0.888 5,700   12 0.200 9,516 8,640.01
15 1.387 5,700   15 0.350 17,546 9,934.42
